Simonswerk Paumelle Ball Race Lift Off Hinge

Aged Brass / LEFT Hand

Web Price £142.00

Simonswerk Paumelle Ball Race Lift Off Hinge

Web Price £142.00

Product code: 1360-LH-AGD

Availability

Made to order.

Finish

Handing

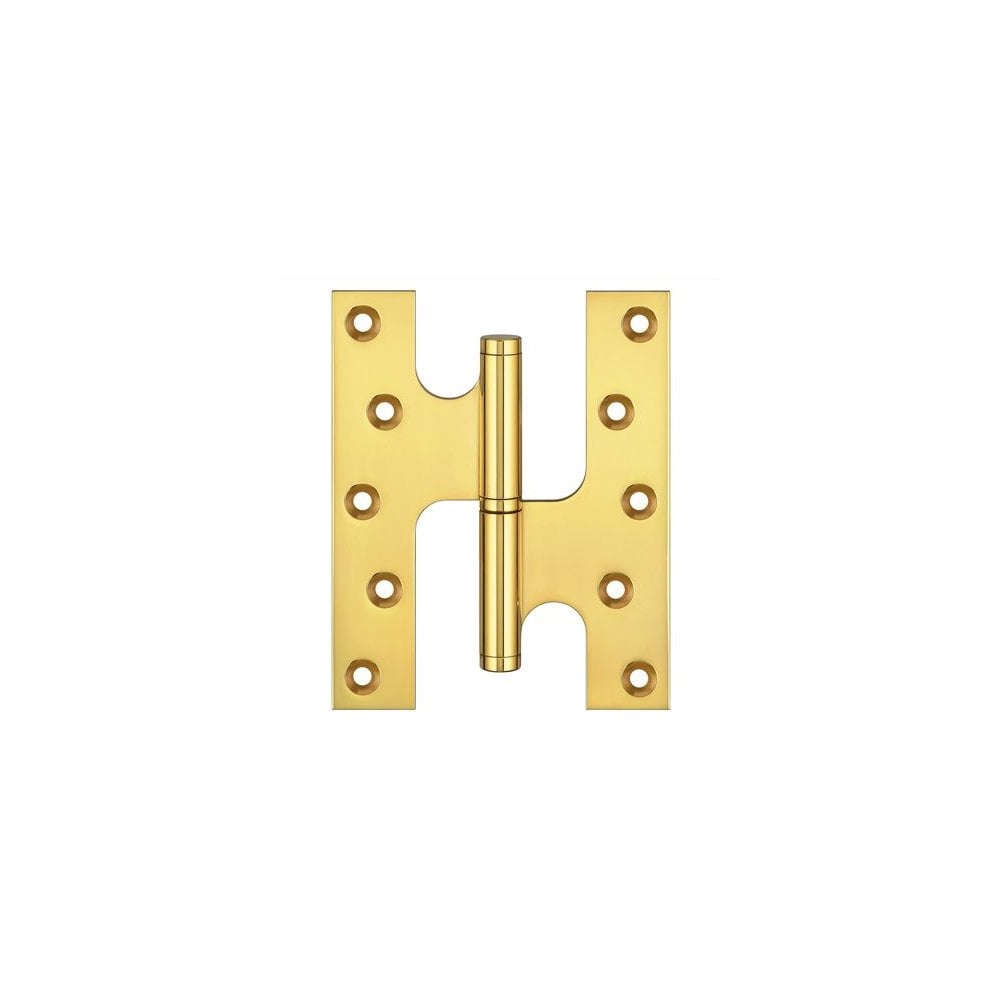

These Paumelle Ball Race Lift Off Hinges are a solid brass hinge, and are designed for use with medium weight flush doors.

The top half of the hinge lifts off making it easier to remove the door from the frame. These Lift Off hinges are handed and must be specified to operate in either a clockwise closing or an anti-clockwise closing direction.

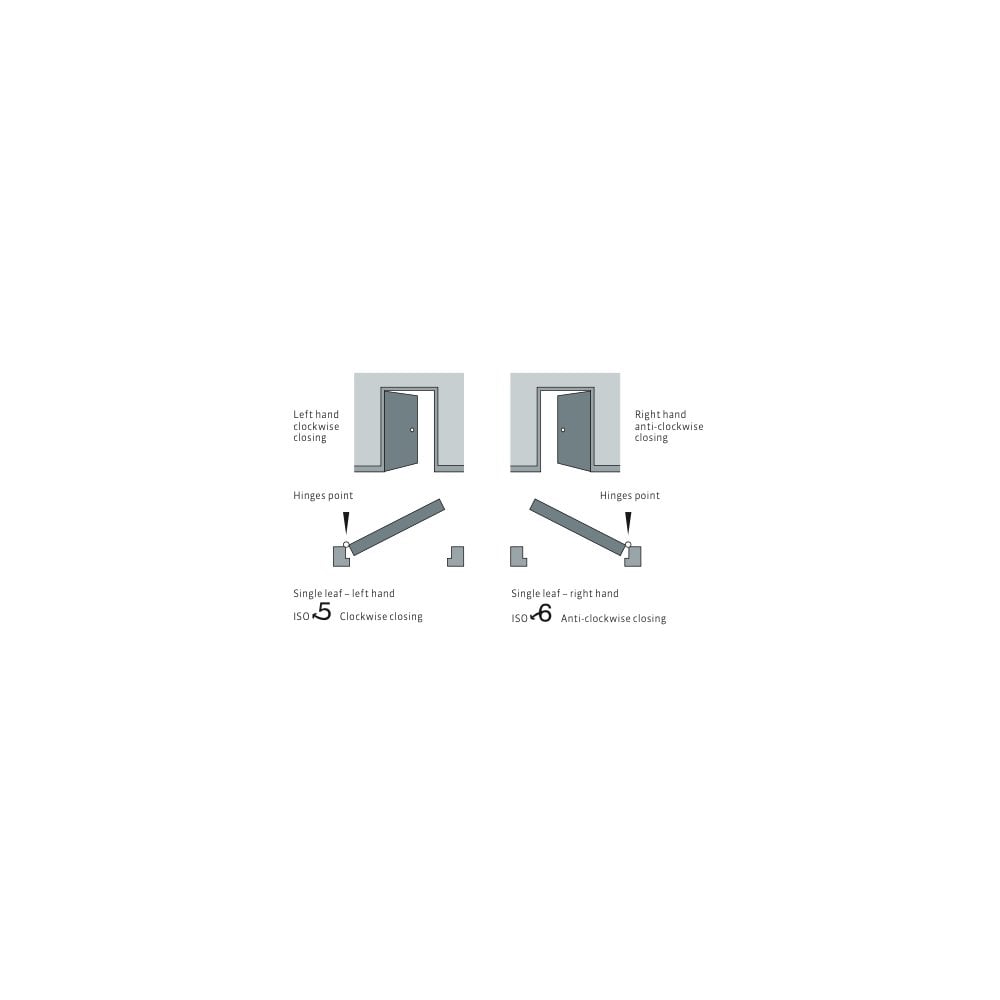

The leaf with the pin in the upwards position must be fitted to the frame. Hinge operation is either clockwise closing or anti-clockwise closing and should be specified using the ISO 5 clockwise closing and ISO 6 anti-clockwise closing convention. Please see the diagram above and check carefully that you are ordering the correct handing for your door - the hinges are made to order and are non-returnable.

There are a range of finishes to choose from so you will be able to find one that matches or complements your door furniture beautifully.

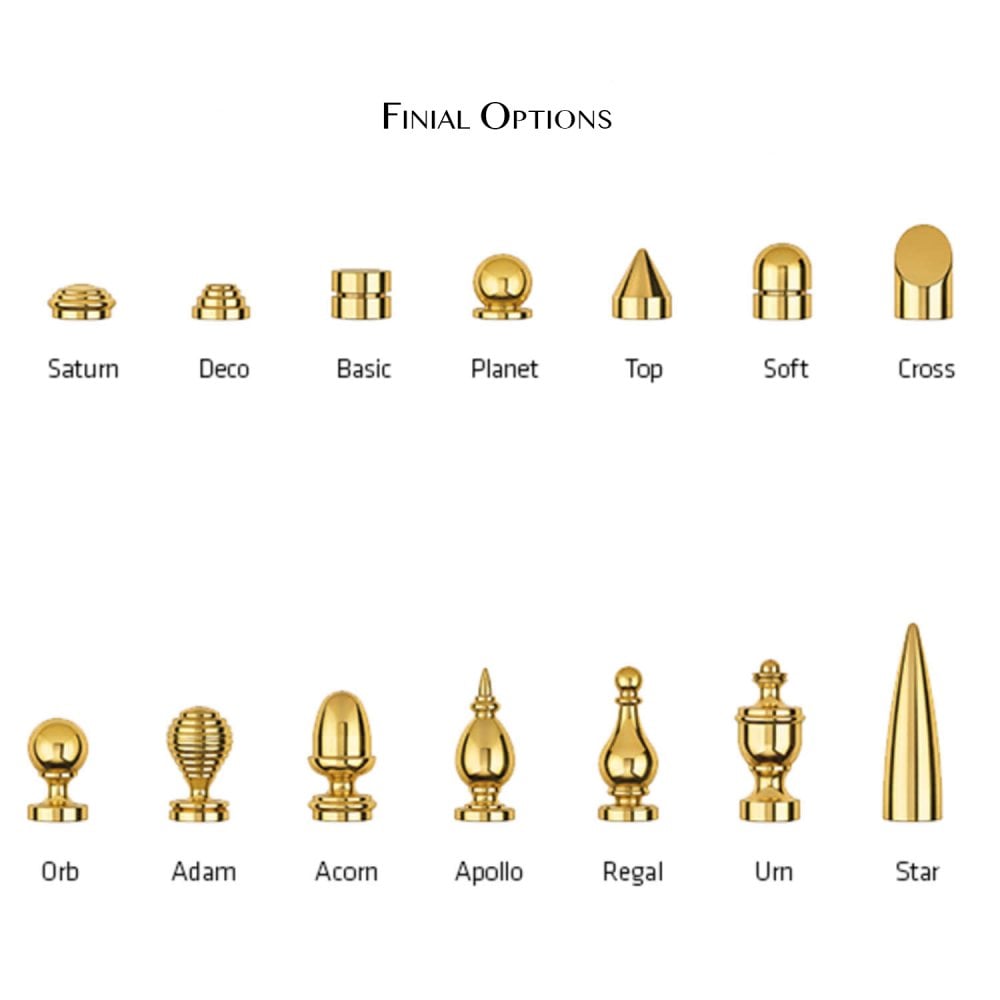

If you would like to order one of Simonswerk finishes not available on our site, please contact us for pricing and to place your order. There are a number of Finial Styles to choose from, at a supplement depending on finish starting from £22.30 - please contact us if you wish to order with finial.

These hinges are sold as a SINGLE HINGE (not in pairs) and we supply them with matching screws. Always make a small pilot drill hole and use a manual screw driver to avoid damaging screws and finish.

This Paumelle Ball Race Lift Off Hinge, is manufactured in the UK by Simonswerk and is suitable for medium weight flush doors.

Made in the UK by Simonswerk
Variety of finishes
Finial options available - starting from £22.30 supplement, please contact us to order
Sold individually - NOT in Pairs
ISO Handed - please check handing before ordering
Supplied matching screws

Made to Order - Non-Returnable - Please double check all details before ordering. Lead time 3 weeks

Please see Care & Maintenance and Finish Information tabs below for more details.

Simonswerk Paumelle Ball Race Lift Off Hinge Dimensions

The following weight guidelines are based on using 3 hinges per door, which is now considered the industry standard.

Height - 127mm
Width - 102mm
Knuckle - 12.7mm
Leaf Thickness - 3.5mm
Load Max - 60kg

Living Finishes

Polished Brass Unlacquered, Satin Brass Unlacquered

Initially this finish will have either a highly polished, reflective surface, or a soft brushed matt surface. Once installed the touch, time and environment will lead to gradual wear and oxidisation, thus imparting charm and elegance.

Plated Finishes

Polished Chrome, Polished Nickel, Satin Chrome, Satin Nickel

These electroplated finishes are used for both decorative and practical purposes. We apply a thin layer of metal our brass substrate which ensures protection of the base metal and excellent resistance to corrosion and the elements.

Special Finishes - Lacquered

Antique Nickel, Imitation Dark Bronze, Antique Brass, Aged Brass

These special finishes are applied over a brass base and then are finished with a protective lacquer.

If you would like to order one of Simonswerk finishes not available on our site, please contact us for pricing and to place your order.

Care Instructions

In order to keep your products in peak condition, it’s important that they’re cared for properly. You will find some basic information in the Finish Information tab below. We have more detailed instruction is our Care Guides HERE.

Atmospheric Conditions and Coastal Areas

Harsh environmental conditions and the salt in sea air will cause finishes to deteriorate prematurely.We have more information on how to look after your purchase, and for our guide to which finishes are more suited to these conditions. See more information HERE.

Commercial Environments

As with atmospheric conditions, high use, commercial environments will also cause finishes to deteriorate prematurely. For more details on how to look after your products in these environments - see HERE.
