Simonswerk Anselmi Self Closing Hinge

Antique Bronze

Web Price £170.00

Simonswerk Anselmi Self Closing Hinge

Web Price £170.00

Product code: AN107-3D-C60-ABZ

Availability

Made to order.

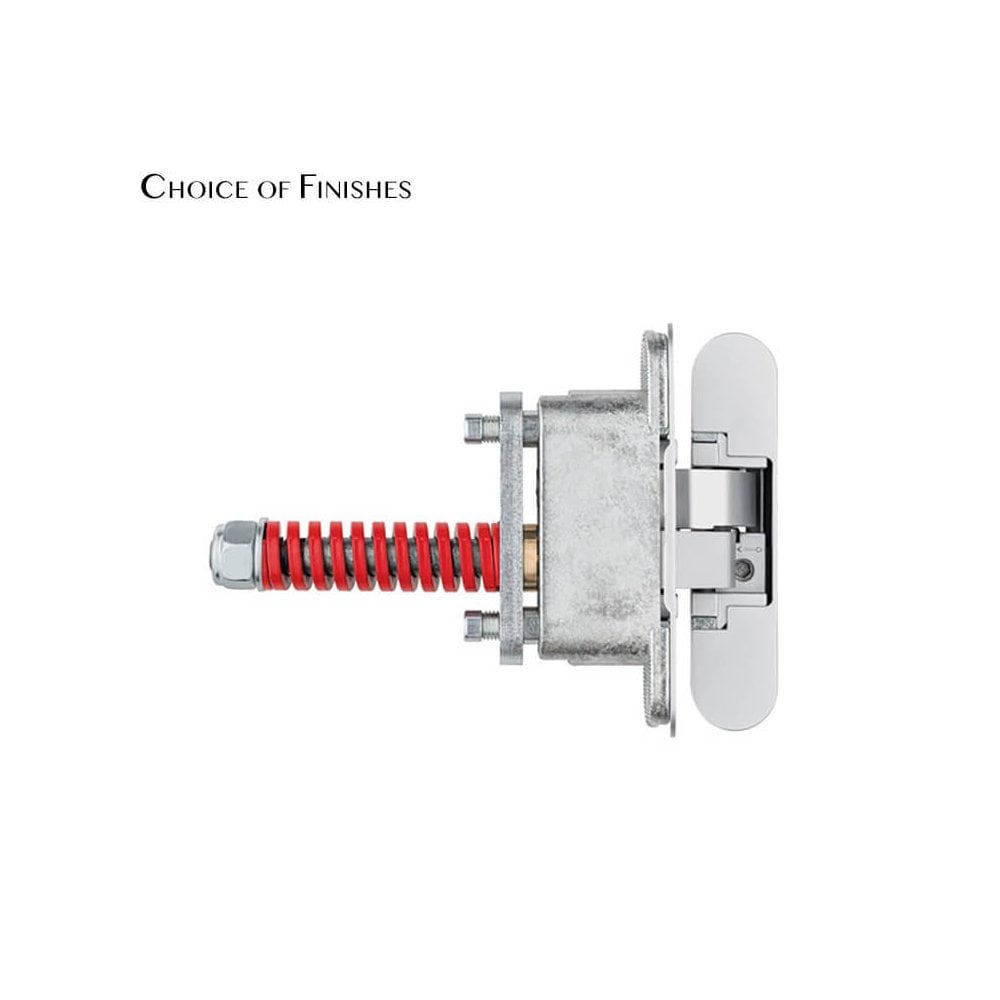

This Simonswerk Anselmi Self Closing Concealed Hinge is for use with their AN160-3D hinge system and allow the door to close in an independent manner. This high quality concealed hinge system is for use with light weight, non-rebated, internal doors.

The hinges with the integrated closing function are installed in the centre between the upper and lower hinge and have a special rotation system - must be used in combination with AN 160 3D.

The hinges system will take a weight capacity of 60kg, making them suitable for most interior timber doors.

Made from Zamak there are a choice of 6 aesthetic finishes that will compliment most door hardware finishes and interior design schemes.

These hinges are sold as a SINGLE HINGE (not in pairs). Screws not supplied

Suggested screws:

Frame side: Countersunk head screws DIN 7505 A, Diameter 4.5 mm
Door side: Pan head screws DIN 7505 B, Diameter 4.5 mm

This Anselmi Self Closing Concealed Hinge system, is manufactured in the UK by Simonswerk and is suitable for light weight interior doors

Made in the UK by Simonswerk
For use with 2 x AN160 Anselmi Hinge
6 finishes available
Sold individually - NOT in Pairs
Up to 60kg weight capacity
Adjustable closing power

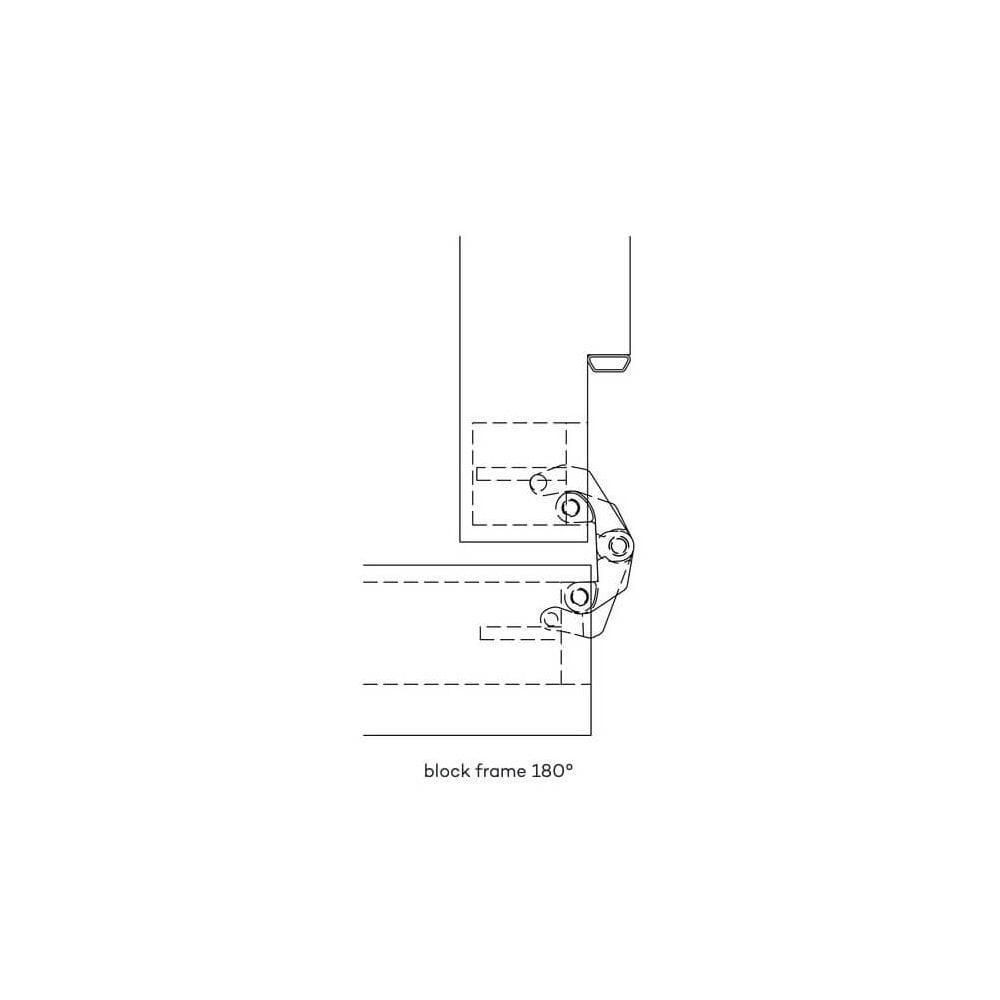

180 degree opening

Made to Order - Non-Returnable - Please double check all details before ordering. Lead time 3 weeks

Please see Care & Maintenance and Finish Information tabs below for more details.

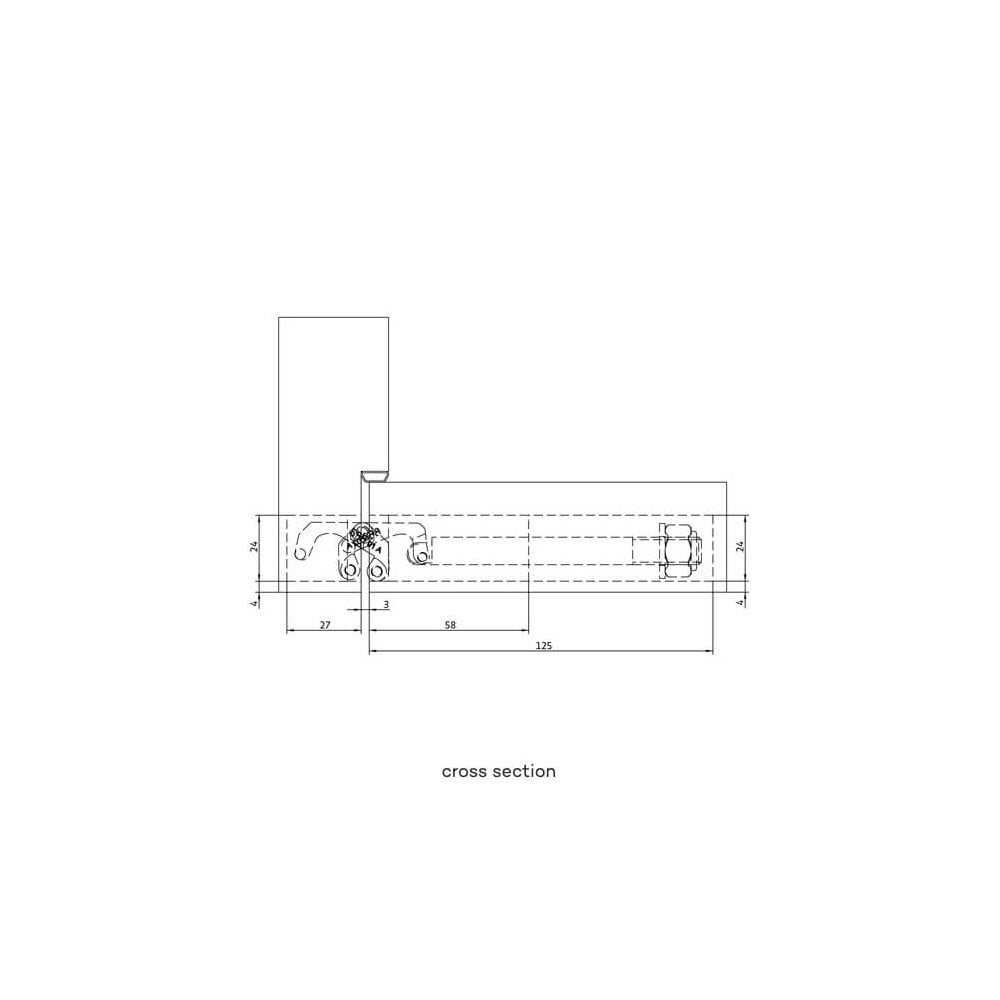

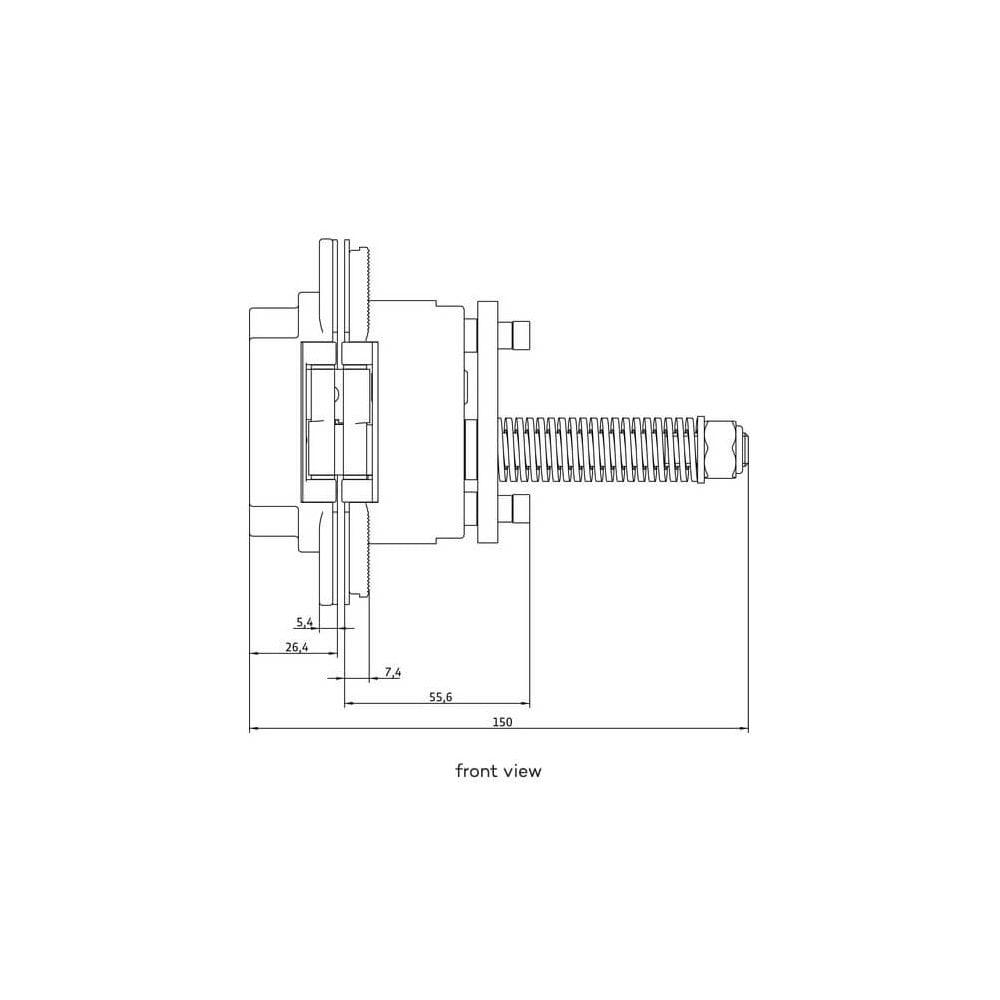

Simonswerk Anselmi Self Closing Concealed Hinge

AN107 3D C60

Overall Length - 110mm
Width - 24mm
Load Max - 60kg
Max Leaf size - 2100 x 900mm

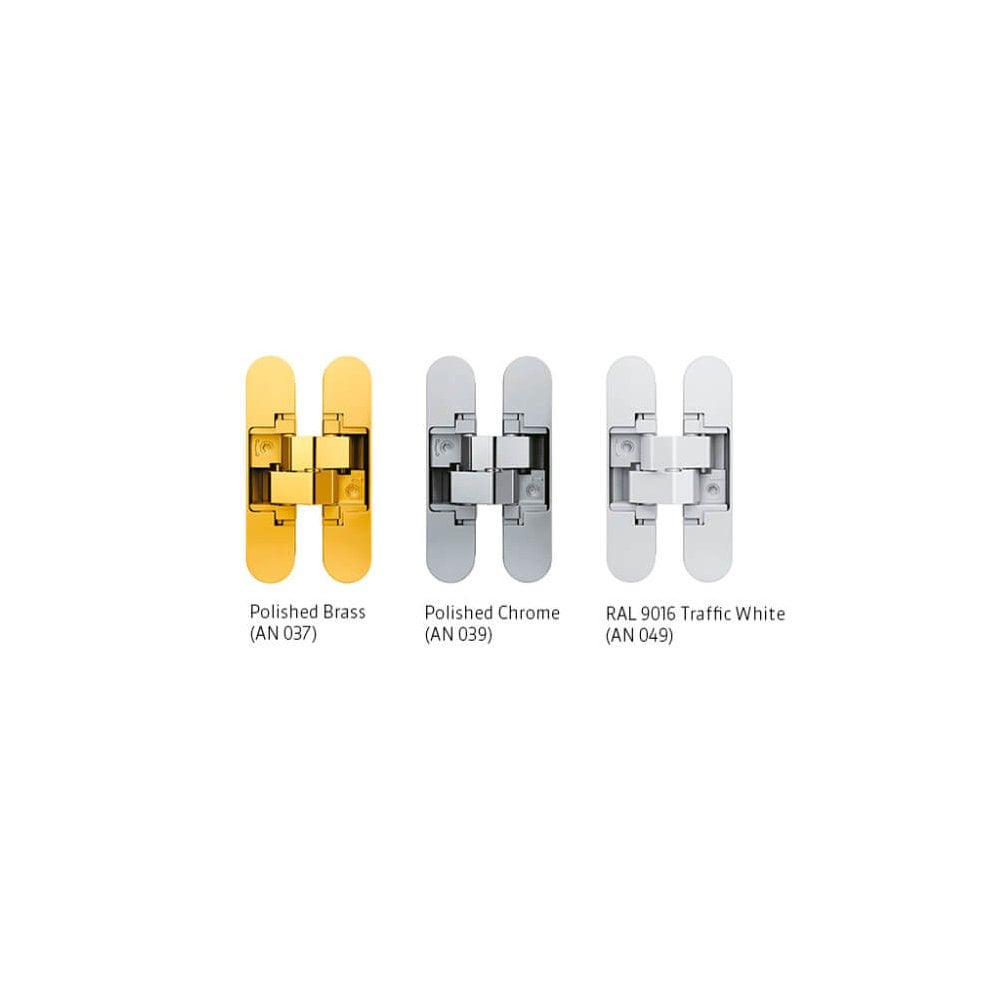

Electro Plated

Polished Brassed, Polished Chrome

Electroplated finish on the face plates and hinge knuckle to provide a hardwearing finish.

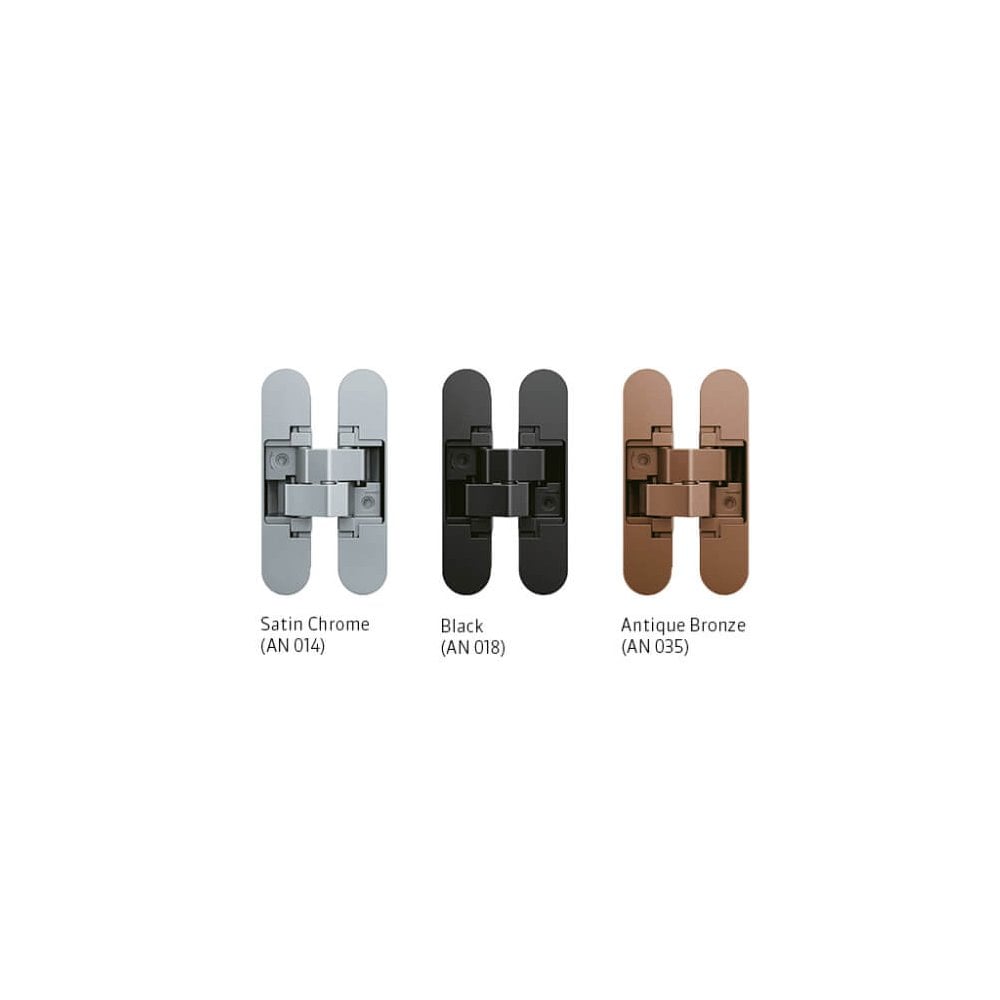

Powder Coated Finish

Satin Chrome, Antique Bronze, Black, White

Powder coated finish on the face plates and hinge knuckle.
