Tubular Mortice Latch (UK)

Tubular Mortice Latch (UK)

Antique Brass / 100mm / Heavy Sprung
Web Price £45.60
Skip to product information
Tubular Mortice Latch (UK)
  • Tubular Mortice Latch (UK)
  • Tubular Mortice Latch (UK)
  • Tubular Mortice Latch (UK)
  • Tubular Mortice Latch (UK)
Tubular Mortice Latch (UK)

Tubular Mortice Latch (UK)

Web Price £45.60
Product code: G4060/100-AB

Availability

Made to order.

High Quality Tubular Mortice Latch, manufactured in the UK by Guardian Imperial Locks. CE Marked and BS EN 1634 approved.

Suitable for use with FD30 or FD60 fire doors when fitted with an intumescent kit - please contact us if you need any advice or to order these.

Springing

Heavy Sprung - for use with Unsprung door furniture - these springs are strong, children and thoses with weaker wrists may have difficulty turning the door knob, please contact us for more advice

Light Sprung - for use with Sprung door furniture
Product Details

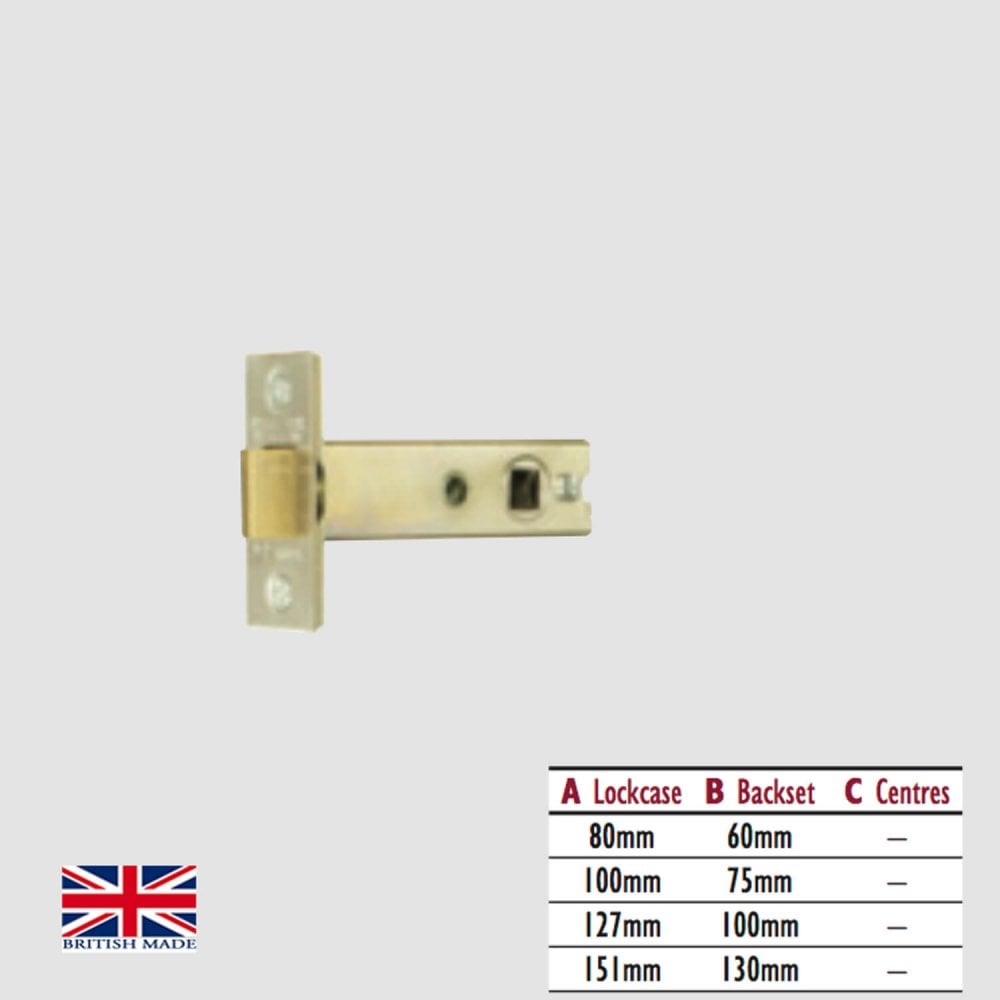

Tubular Mortice Latch, our main picture illustrating the 151mm in Satin Stainless Steel.

Available in a range of finishes

  • Made in the West Midlands
  • Heavy Sprung or Light Sprung
  • Suitable for left or right hand doors
  • To suit a standard 8mm square spindle
  • Rebate Kits available - please contact us for details
  • Suitable for use with Fire rated Doors when fitted with an intumescent kit

The Latchbolt is operated by a door knob or lever handle from either side.

These locks are generally assembled to order and the lead time is approximately 4 weeks.

If you need your fittings sooner please contact us so that we can check stock levels and advise.

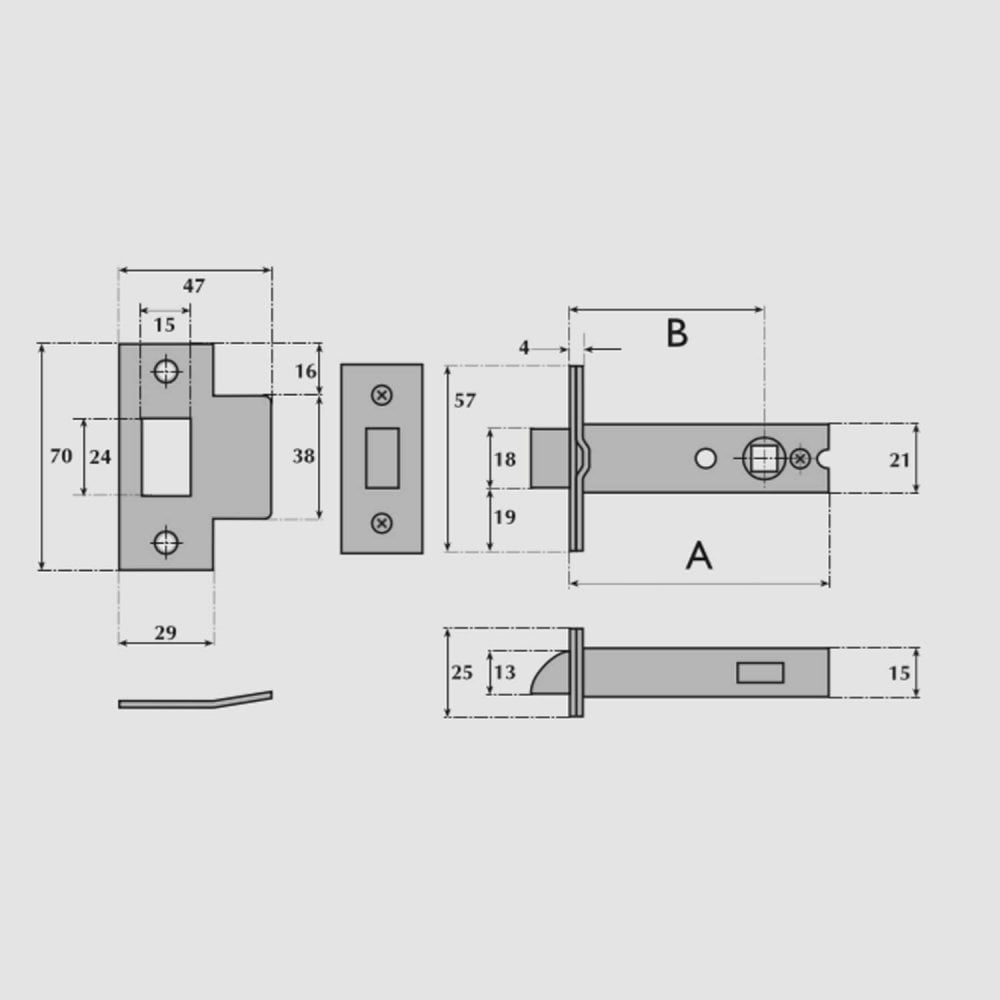

Dimensions

Lock sizes

For use with Lever Handles

  • 80mm Lockcase - 60mm Backset

The vast majority of Lever Handles are Sprung, but please do check before ordering. If you are unable to find out we would recommend using the Heavy Sprung to ensure the lever does not droop.

For use with Door Knobs

  • 100mm Lockcase - 75mm Backset
  • 127mm Lockcase - 100mm Backset
  • 151mm Lockcase - 127mm Backset

A Backset of at least 75mm is needed to allow the door knob to turn properly and prevent you from catching your hand on the door frame.
Finish Information

Satin Brass

Brushed brass and a matt lacquer provides a robust non-reflective finish.

Polished Brass Unlacquered

Highly polished finish which will age and develop a patina over time.

Antique Brass

Brass base with an antique patina and matt lacquer to give aged look without the wait.

Dark Bronze

A dark bronze over a copper plated brass base to emulate aged bronze.

Black

Matt black powder coated finish.

Satin Stainless Steel

Simple brushed stainless steel finish.

Polished Stainless Steel

Highly polished stainless steel finish.
Finish Swatches
Care & Maintenance

Care Instructions

In order to keep your products in peak condition, it’s important that they’re cared for properly. You will find some basic information in the Finish Information tab below.  We have more detailed instruction is our Care Guides HERE.

Atmospheric Conditions and Coastal Areas

Harsh environmental conditions and the salt in sea air will cause finishes to deteriorate prematurely.We have more information on how to look after your purchase, and for our guide to which finishes are more suited to these conditions.  See more information HERE.

Commercial Environments

As with atmospheric conditions, high use, commercial environments will also cause finishes to deteriorate prematurely. For more details on how to look after your products in these environments - see HERE.
Delivery & Returns

UK

£6.75 - Standard UK Delivery (not including highlands, islands and remote areas) - FREE on orders over £75

£22.00 - Scottish Highlands and Islands, Channel Islands, Isle of Wight, Isle of Man, Scilly Isles and Northern Ireland

Orders will be processed within 24 hours and we aim to dispatch all stock items within 2 - 3 working days.

Made to order products will vary by manufacturer as described on the product page, we will also confirm this to you when sending your invoice and final order confirmation.

International Orders

European Countries - start from £30

USA, Canada and Australia - start from £45

Rest of the World - start from £50

Your order will be processed without shipping costs, this will be invoiced prior to dispatch once known.

For more information - see HERE.

Returns

Flexible 28 day returns policy for all In Stock Items - see HERE.

Please remember Made to Order goods cannot be returned
